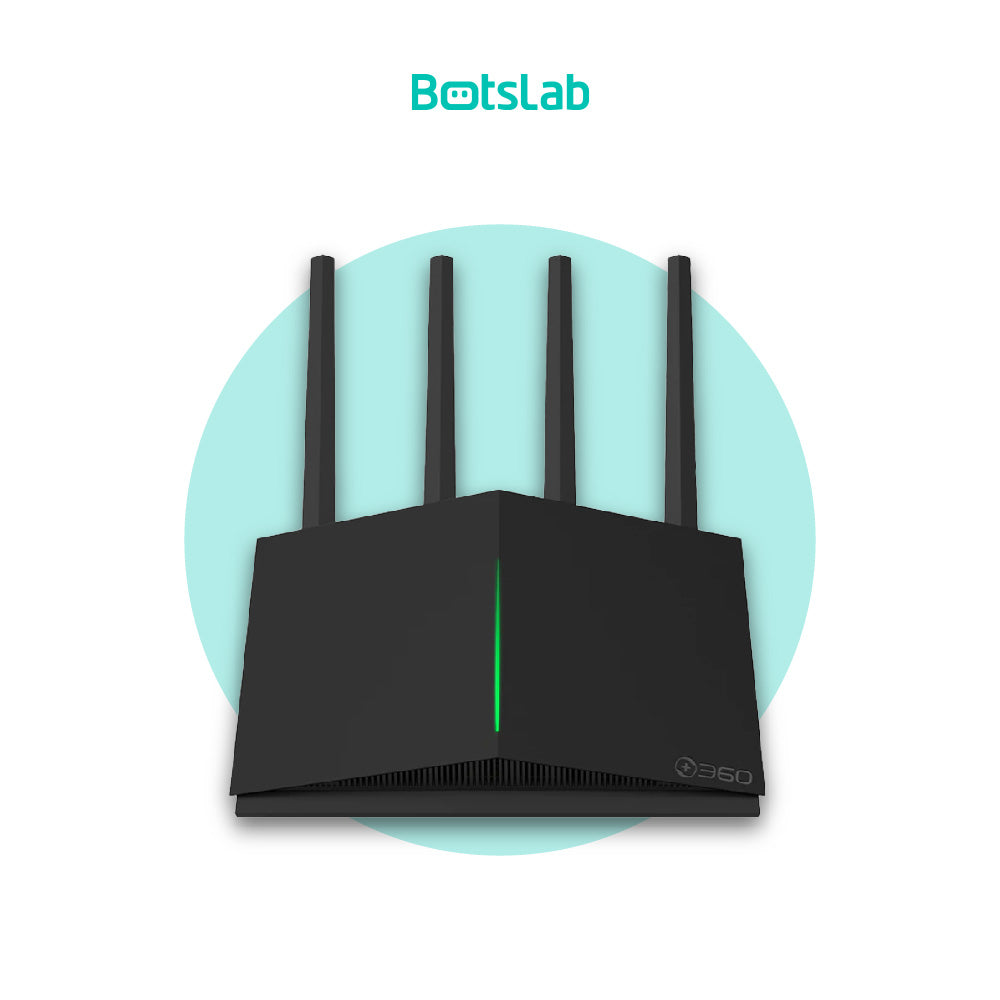

Botslab WiFi Router - AC1200 Dual Band Gigabit
Model:R5
HIGHLIGHTS
【Ready Stock + 1 Year Warranty】

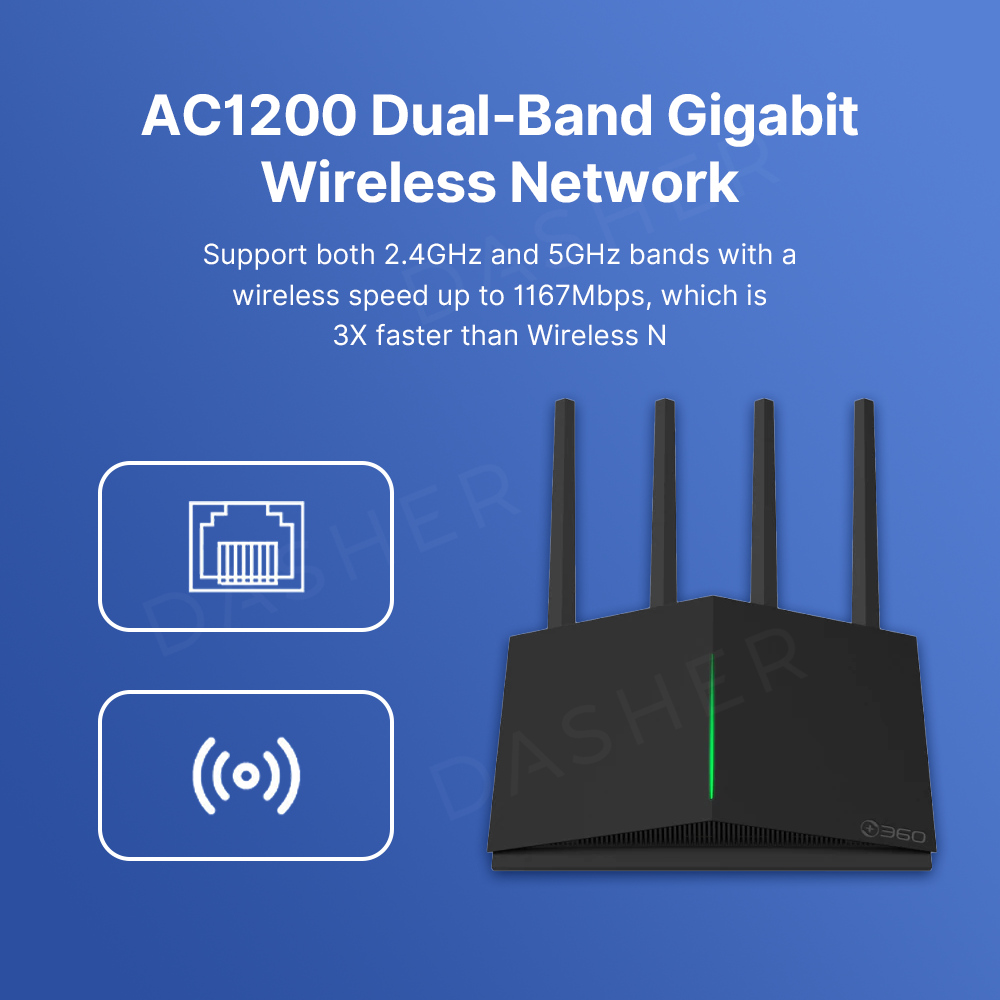

【Dual Band Gigabit Wireless Network】Support both 2.4GHz (300 Mbps) and 5GHz (867Mbps) bands with a wireless speed up to 1167Mbps.
【4 High Performance Antennas + Beamforming Technology】Easily cover large house with a stable and wide signal coverage.
【MU-MIMO Technology】Enjoy a pleasant Wi-Fi experience with multiple devices at the same time.
【Easier to manage Home Wi-Fi Network】Provide intelligent functions such as parental control, guest network and networked device management

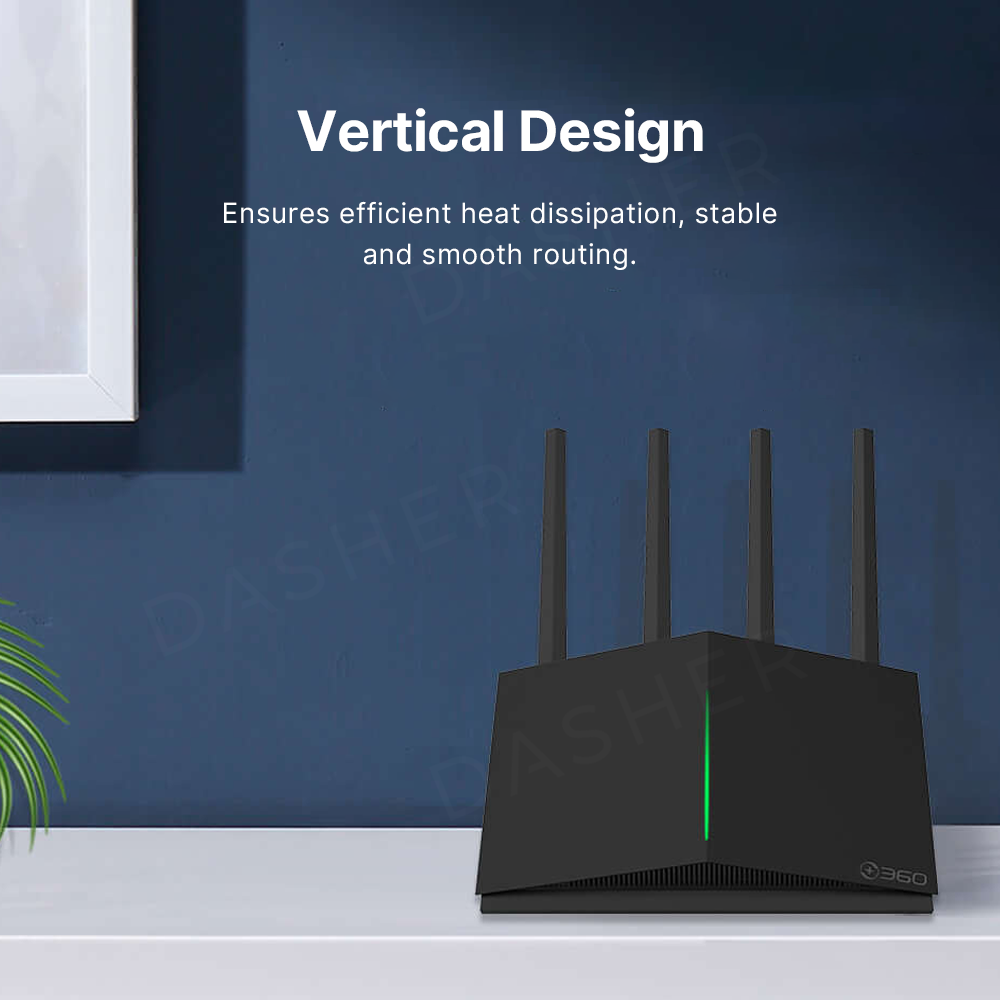

【Vertical Design】Ensures efficient heat dissipation, stable and smooth routing.
【Upgraded R5S Model: Dual Core 880 MHz CPU + 128MB Memory】Provide powerful performance at the same time support concurrent connection for multiple devices.
SPECIFICATIONS
R5 - Flash: 8MB,RAM: 64MB
R5S - Flash: 16MB, RAM: 128MB

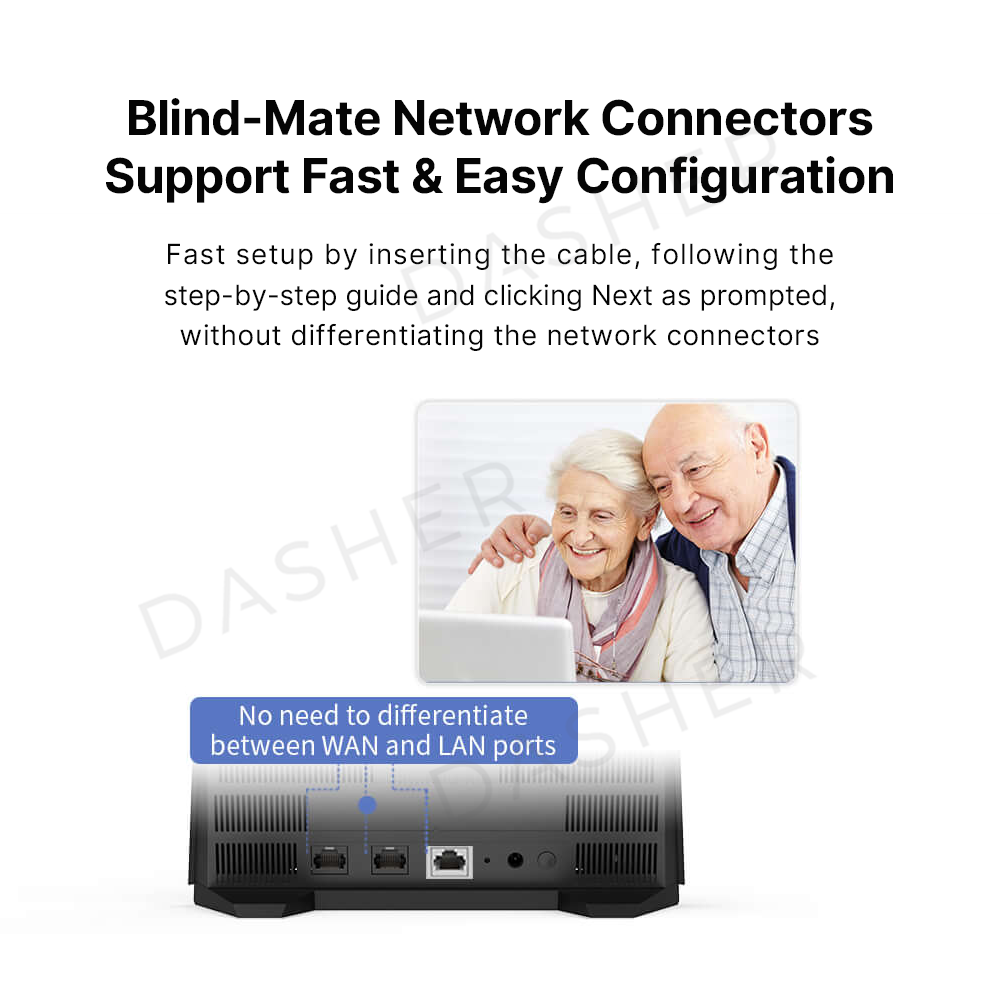

Interface: 1 * 10/100Mbps WAN port, 2 * 10/100Mbps LAN ports
Antenna Gain: 2 x 2.4-2.5GHz (5dBi), 2 x 5.15-5.85GHz (5dBi)
Orientation: Omni-directional
Power Input: 100-240V/50-60Hz
Power Output: 12VDC/1A
Wireless Mode: 2.4G: 11b/g/n, 5G: a/ac
Frequency Band: 5GHz: Band1(CH36, 40, 44, 48), 2.4GHz: CH1~CH13
Data Transmission Rates: 300Mbps(2.4GHz), 867Mbps(5GHz)
RF Power: Follow CE: <20dBm(2.4GHz), <23dBm(5GHz)
Wireless Security: 64/128-bit WEP,WPA / WPA2,WPA-PSK/WPA2-PSK encryption
DHCP Assign: DHCP server enabled: 192.168.10.1/255.255.255.0, DNS Server : Optional
Software: Support MU-MIMO and beamforming, Support full EWAN port, Port Forwarding
Access Control: Parental Control, Local Management Control, Host list, Access Schedule
Firewall Security: DDoS, SPI Firewall(Web certificate), IP and MAC Address Binding
Protocols: IPv4
Management: Access Control, Local Management, Guest network
Access Internet: Dynamic IP, Static IP, PPPoE, L2TP, PPTP
Wireless Security: Provides WPA/WPA2 and WPA-PSK/WPA2-PSK authentication and TKIP/AES encryption security
Provides 64/128-bit WEP encryption security and wireless LAN ACL (Access Control List).
WHAT’S IN THE BOX
1 x Router
1 x Power Adapter
1 x Quick Installation Guide
1 x Stand base for housing
1 x 1m CAT5 RJ45 Cable
