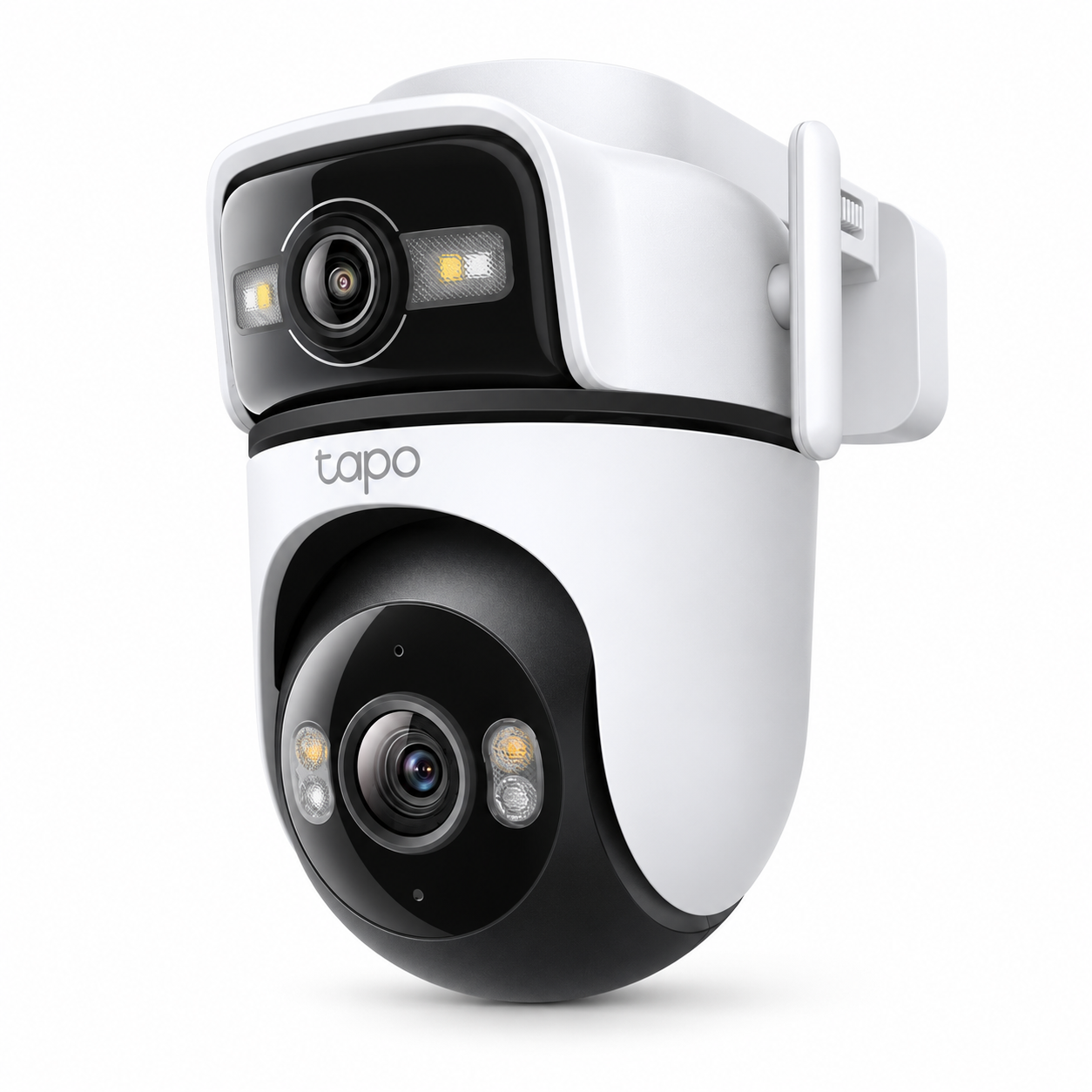

Tapo C545D Outdoor Dual Lens Pan/Tilt Security Camera | 2K 3MP + 2K 3MP, 165° Wide-Angle & 6 mm Telephoto, Smart Tracking, Wi-Fi 6 & Ethernet, IP66

Two lenses, two views, one camera. The Tapo C545D pairs a 165° ultra-wide-angle lens with a 6 mm telephoto pan/tilt lens — both recording in 2K 3MP — so you can monitor the full scene and zoom into details simultaneously, all in an IP66 weatherproof outdoor body.

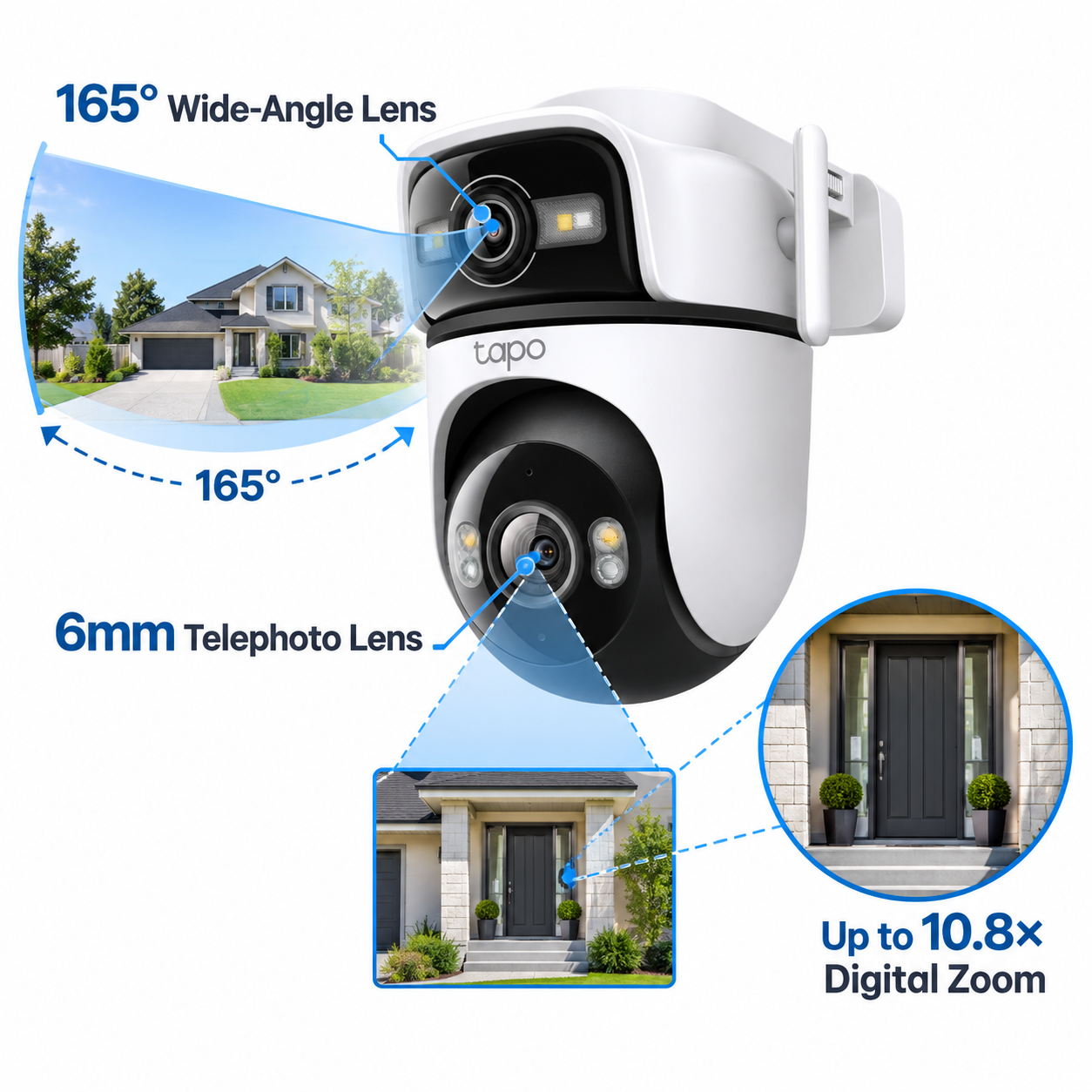

Dual 2K 3MP Lenses — Wide + Telephoto
The fixed top lens captures a sweeping 165° field of view for full-scene awareness. The motorised bottom telephoto lens delivers 3× sharper detail than a standard lens and supports up to 10.8× digital zoom for close-ups of faces, licence plates, and fine details. Both streams display on one screen in the Tapo app.

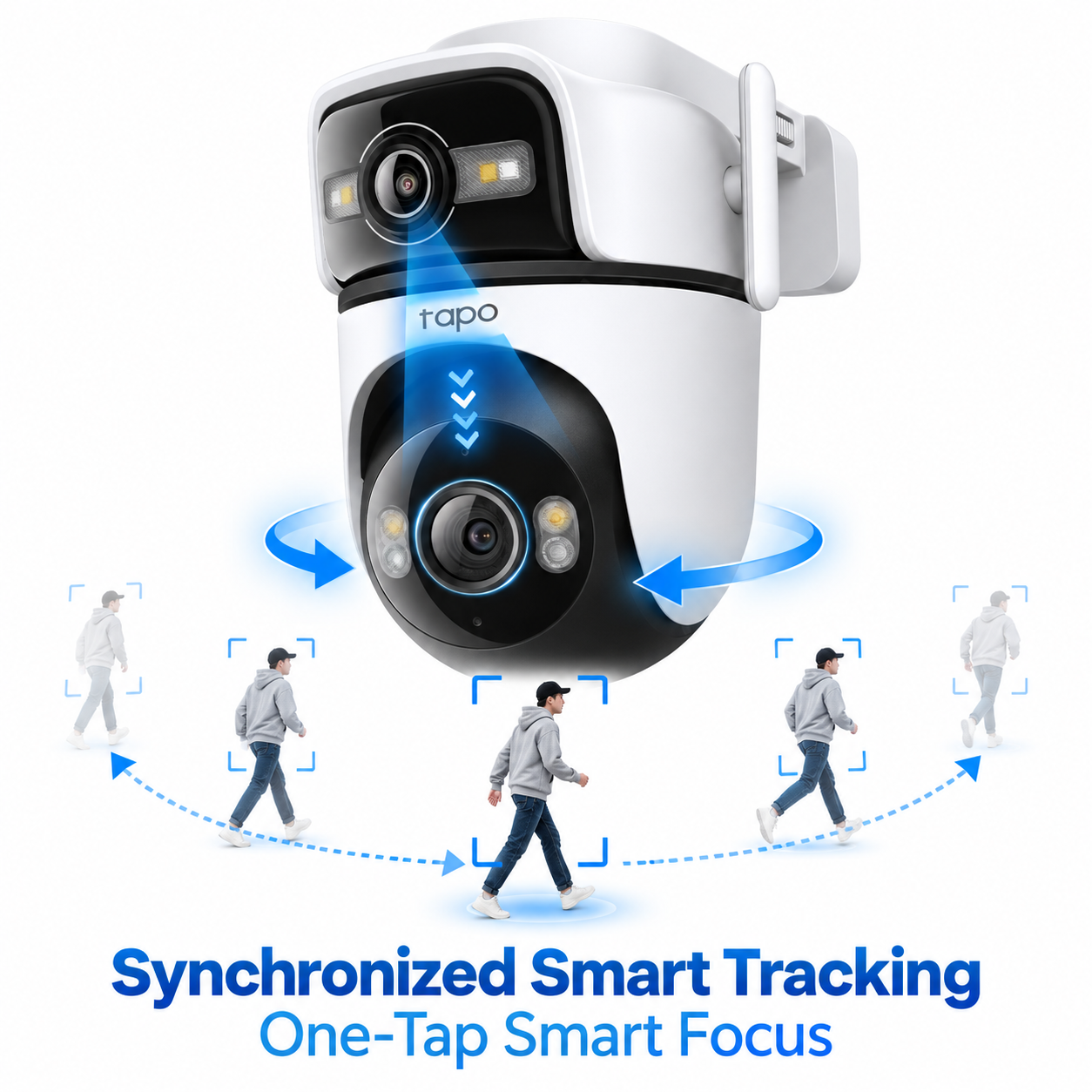

Synchronised Smart Tracking
When the wide-angle lens detects motion, the telephoto pan/tilt lens automatically pivots to follow the moving subject — keeping people, pets, and vehicles in frame without manual adjustment.

One-Tap Smart Focus
Spot something in the wide-angle view? Tap it, and the telephoto lens instantly zooms in for a closer look.

Patrol Mode
Set the telephoto lens to cruise automatically between up to 8 preset viewing points at scheduled times for continuous perimeter monitoring.

Free Smart AI Detection — No Subscription
On-device AI identifies people, pets, and vehicles, plus line-crossing and camera-tampering detection. Push notifications are sent only when relevant events are detected. Set customisable activity zones to reduce false alerts. No monthly fees.

Smart Night Vision (3 Modes)
Choose the mode that fits your needs: full-color night vision with spotlights for vivid detail, discreet black-and-white IR for up to 30 m (99 ft) range, or smart mode that automatically switches from IR to color when motion is detected.

Wi-Fi 6 + Ethernet — Flexible, Reliable Connectivity
Connect wirelessly via Wi-Fi 6 (802.11ax, 2.4 GHz) with powerful dual antennas, or plug in via the built-in 10/100 Mbps Ethernet port for a rock-solid wired connection. Supports WPA3 for stronger wireless security.

Customisable Sound & Light Alarm + Two-Way Audio
Trigger a 99 dB siren and spotlights remotely, or record a custom warning message. Built-in mic and speaker with noise cancellation let you communicate in real time.

Customisable Privacy & Activity Zones
Block specific areas from being recorded, and set activity zones so you only get alerts where it matters.

IP66 Weatherproof — Built for Extremes
Handles rain, snow, dust, and harsh sun. Operates from −30 °C to 60 °C for reliable year-round outdoor use.

Flexible Mounting — Wall, Eave, or Pole
Mount on a wall or eave with the included bracket. For pole mounting, add optional mounting loops (sold separately).

Flexible Storage
Save recordings locally on a microSD card (up to 512 GB, sold separately), subscribe to Tapo Care cloud storage for 30-day video history, or centralise playback across all Tapo cameras with a Tapo H500/H200 HomeBase (sold separately).

Works with Your Smart Home
Compatible with Amazon Alexa, Google Assistant, and Samsung SmartThings. Supports RTSP and ONVIF for third-party NVR integration.

Specifications

• Resolution: 2K 3MP (2304 × 1296) + 2K 3MP (2304 × 1296) @ 15 fps
• Sensor: 1/2.8″ CMOS
• Wide-Angle Lens (top, fixed): 2.53 mm, F1.6, 165° diagonal / 138° horizontal
• Telephoto Lens (bottom, pan/tilt): 6 mm, F1.6, 66.5° diagonal / 57.3° horizontal
• Wide-Angle Adjustment: Manual pan 270° / tilt −30° to −10°
• Telephoto Pan/Tilt: Automatic tracking + manual control
• Digital Zoom: Up to 10.8× (telephoto lens)
• Night Vision: 850 nm IR LED (up to 30 m) + Color Night Vision with spotlights + Smart Mode
• AI Detection: Person, Pet, Vehicle, Motion, Line-Crossing, Tamper (free)
• Video Compression: H.264 with 3DNR & WDR
• Connectivity: Wi-Fi 6 2.4 GHz (802.11 b/g/n/ax) + 10/100 Mbps Ethernet
• Security: WPA/WPA2/WPA3, 128-bit AES with SSL/TLS
• Protocols: RTSP, ONVIF
• Audio: Two-way with noise cancellation (99 dB siren)
• Storage: microSD up to 512 GB / Tapo Care cloud / Tapo H500/H200 HomeBase
• Weather Rating: IP66
• Power: 12V/1A DC adapter (included), 3 m cord, 100–240V input
• Smart Assistants: Alexa, Google Assistant, Samsung SmartThings
• Mounting: Wall, eave, pole (loops sold separately)
• Operating Temp: −30 °C to 60 °C
• Dimensions: 114.6 × 159.6 × 152.1 mm
• Weight: 491g

What's in the Box
Tapo C545D Camera, 12V DC Power Adapter, Mounting Bracket, Mounting Template Sticker, Mounting Screws & Anchors (×4), Waterproof Seal, Waterproof Cable Attachments, Quick Start Guide
