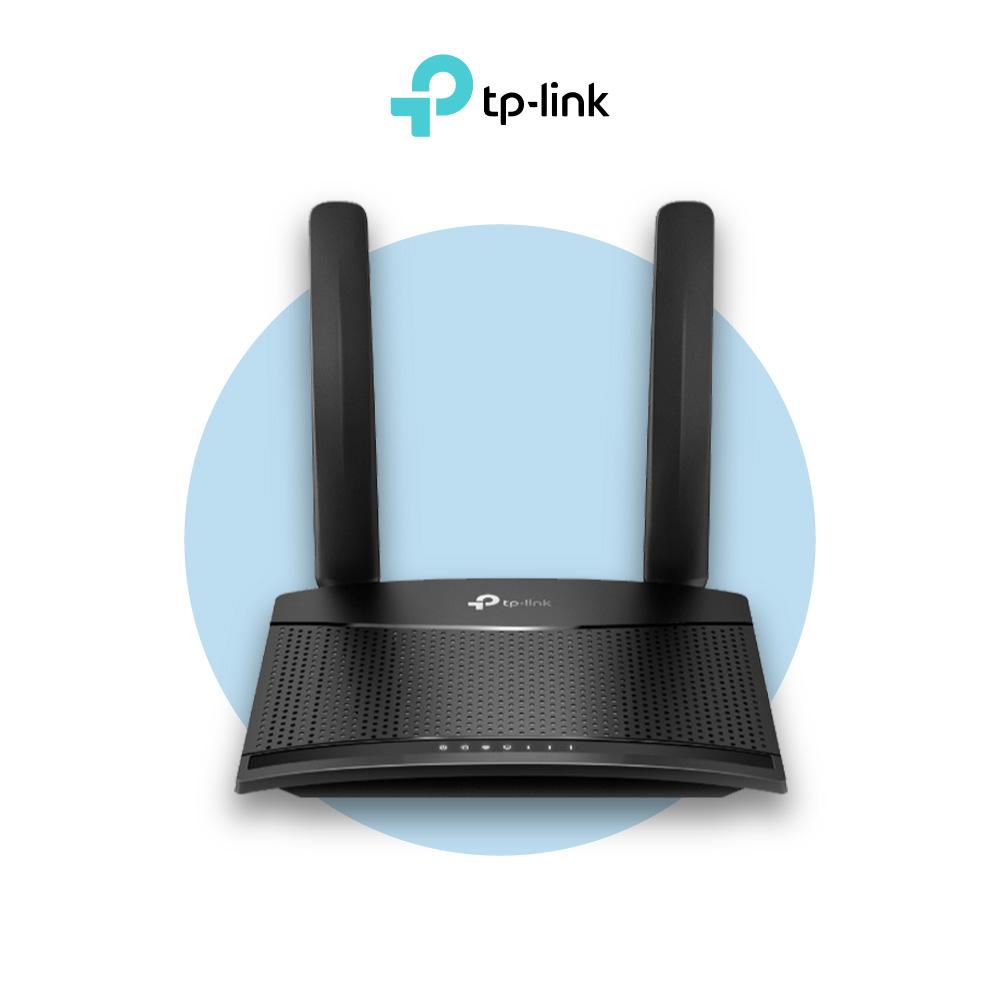

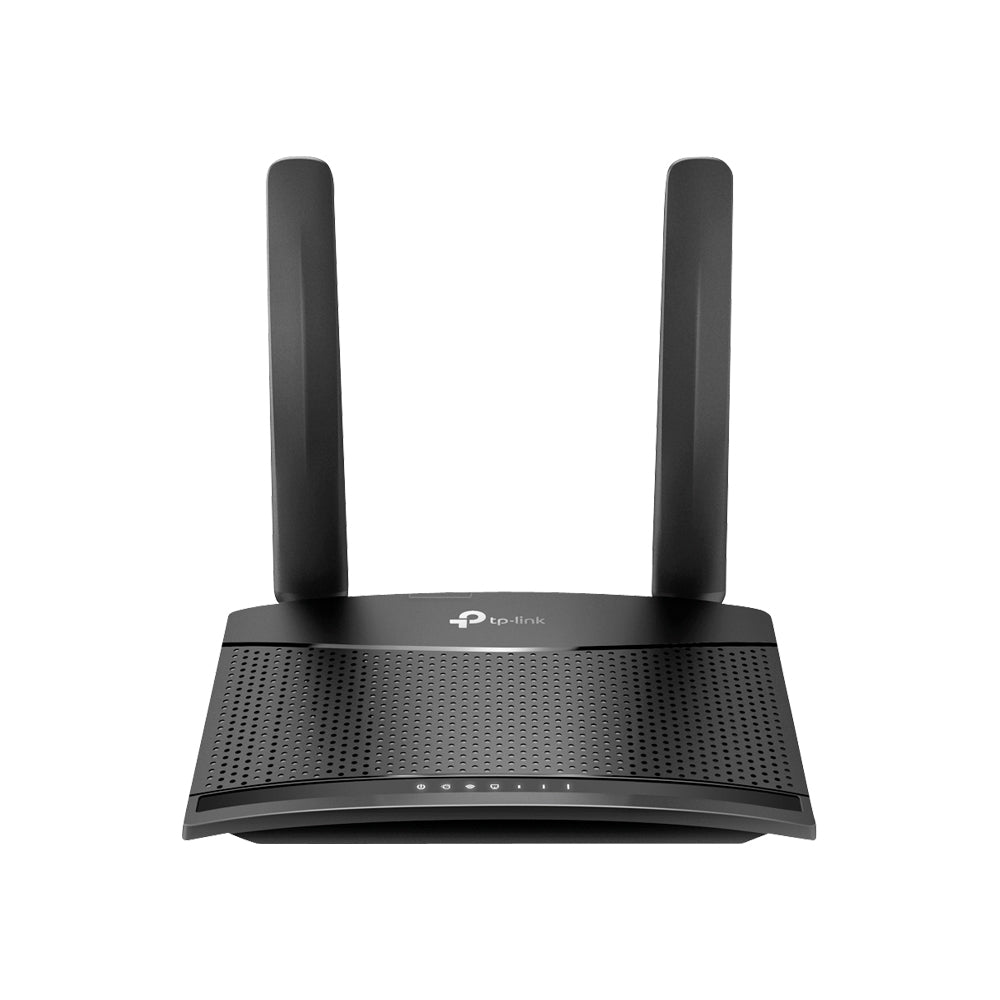

TP-Link TL-MR100 Wifi Router
⭐WHY BUY FROM DASHER?
⭐We are the TOP and MOST TRUSTED seller in Singapore
⭐Any questions? Our customer service has blazing fast responses!
🚚Your product will be delivered within 1-3 working days!
📅3 Year Warranty 1 to 1 exchange at Ban Leong service centre for defective item (Please provide proof of purchase at Ban Leong to claim warranty & for any enquiries, contact our customer service for assistance.)
HIGHLIGHTS
【Cutting-edge 4G network】Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps.

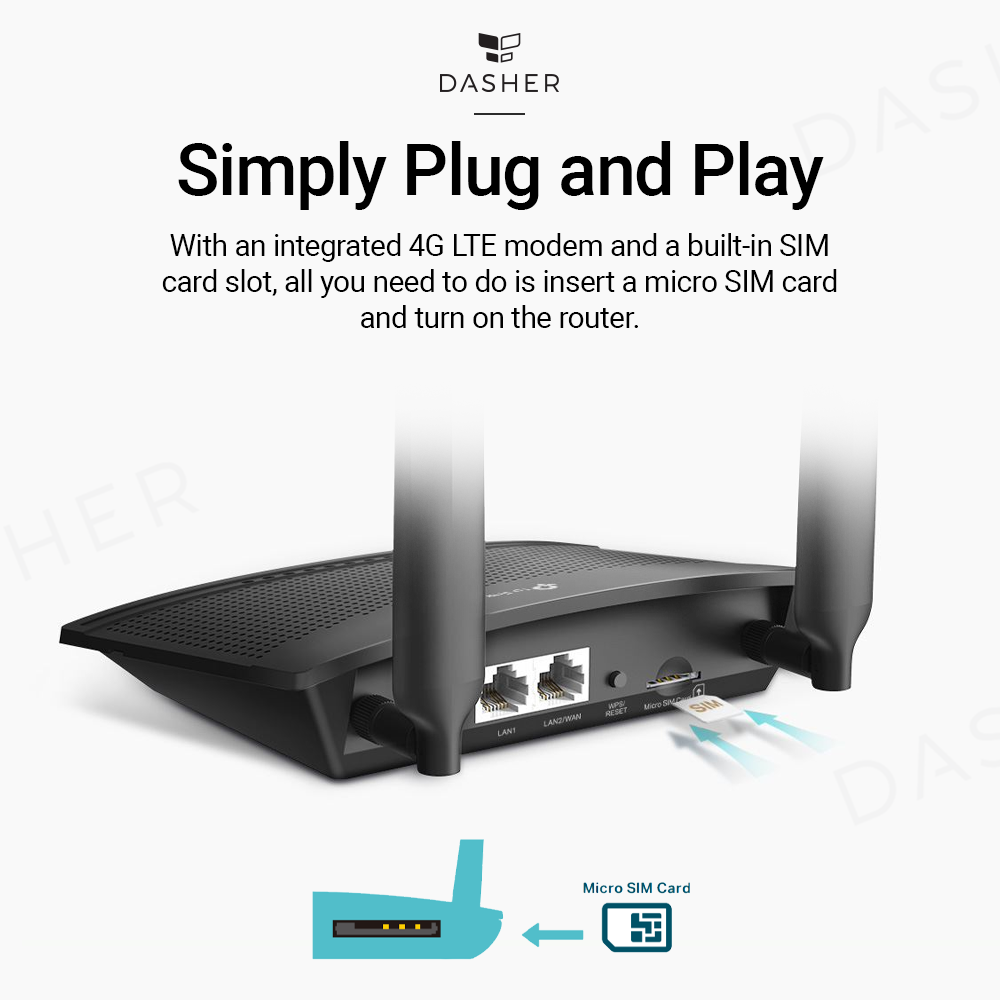

【Plug a SIM card and play】 No configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests.
【Two detachable advanced LTE antennas】Enjoy stable and efficient connections to every device thanks to the two external antennas.
【Wi-Fi router mode】 Plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection.
SPECIFICATIONS
Brand: TP-Link
Model: TL-MR100
Interface: 1 10/100Mbps LAN Port, 1 10/100Mbps LAN/WAN Port, 1 Micro SIM Card Slot
Button: WPS/Reset Button
External Power Supply(EU): 9V/0.85A
Antenna: 2 Detachable External 4G LTE Antennas
Antenna Type: V3/APAC: 2 Internal 4G LTE Antennas ,V4/V2/V1: 2 Detachable 4G LTE Antennas
Wireless Standards: IEEE 802.11b/g/n
Frequency: 2.4 GHz
Signal Rate: 300 Mbps
Reception Sensitivity:
11g 54M: -74 dBm
11n HT20: -71 dBm
11n HT40: -68 dBm
Transmit Power: < 20 dBm (2.4 GHz)
Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Network Type:
4G: FDD-LTE: B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz)
TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)
Security: IPv4 SPI Firewall, IP and MAC Address Binding
Operating Modes: 3G/4G Router, Wireless Router
WAN Type: Dynamic IP/Static IP/PPPoE/PPTP (Dual Access)/L2TP(Dual Access)
Management: Local Management, Remote Management
Port Forwarding: ALG, Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS: DynDns, NO-IP
Protocols: IPv4, IPv6
Administration: Upgrade Firmware, Factory Default, System Log, Diagnostic Tools
WHAT'S IN THE BOX
1 x 300 Mbps Wireless N 4G LTE TL-MR100
1 x Power Adapter
1 x RJ45 Ethernet Cable
1 x Quick Installation Guide
